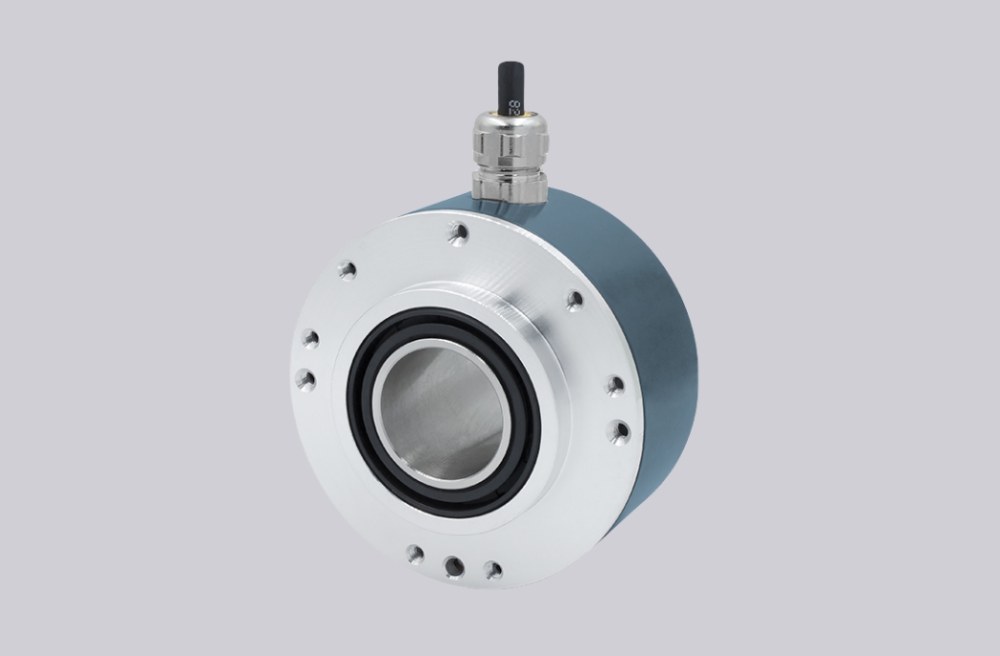

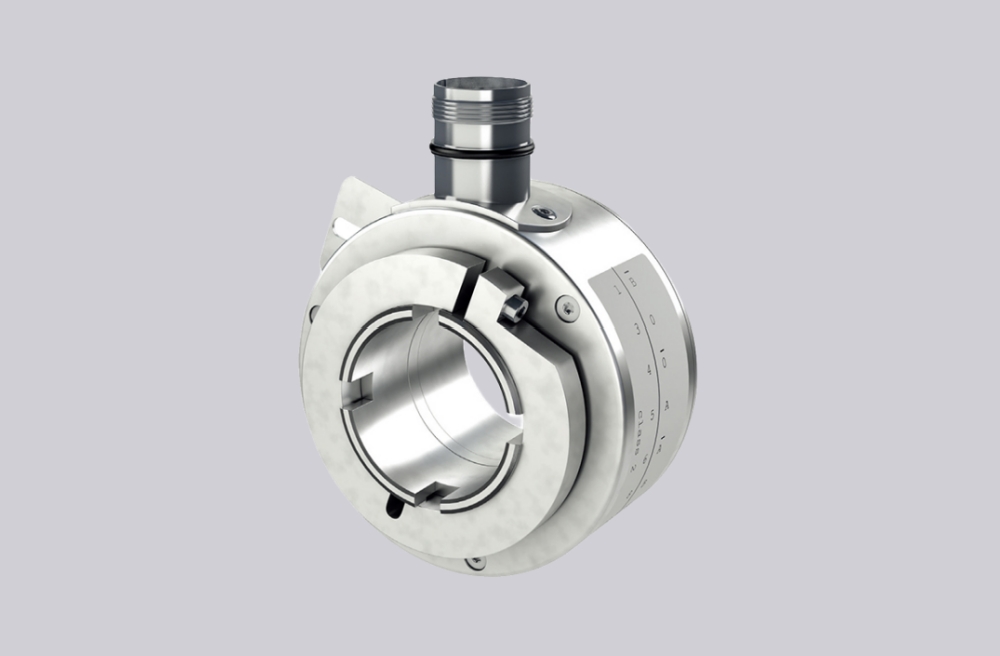

Incremental Encoder 90mm Standard Through-Hole Diameter Type

Outside dimensions 90mm through-hole type, hole diameter 45mm max.
Precise photoelectric or magnetic induction technology, good electromagnetic compatibility
Up to 10,000 P/R pulses per revolution
Over-voltage, over-current, surge protection
Operating temperatures are selectable from -40°C...+110°C.
Rugged metal housing, double bearing design, protection class up to IP65
Reverse short-circuit and short-circuit protection to minimize the impact of installation errors on the encoder.

Plug wiring

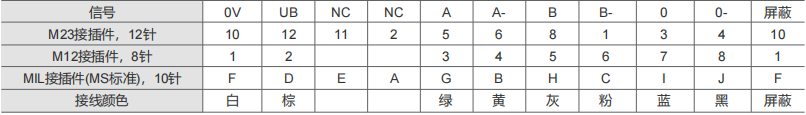

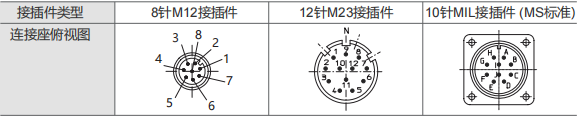

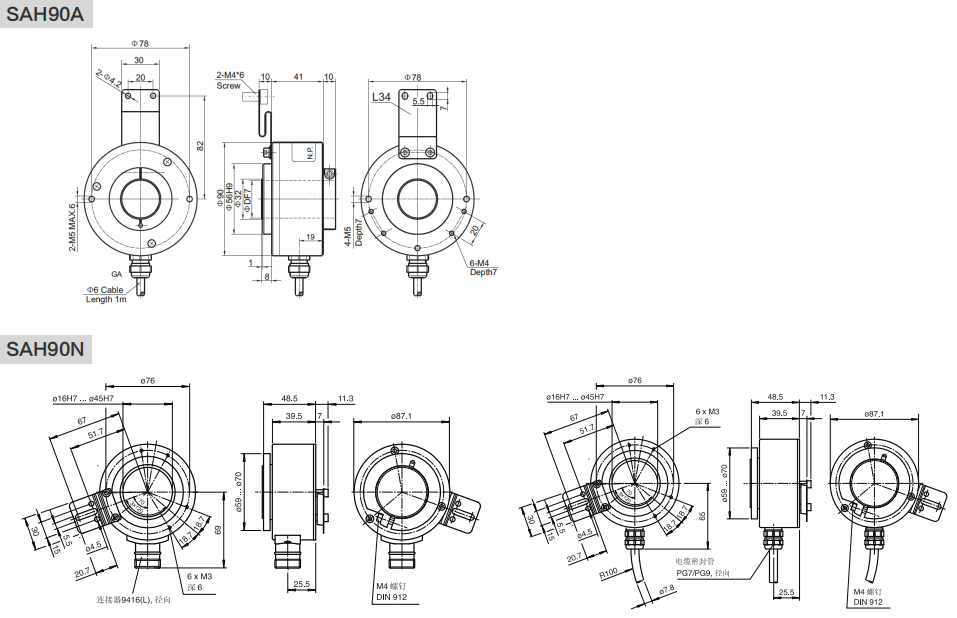

Installation Dimension Drawing

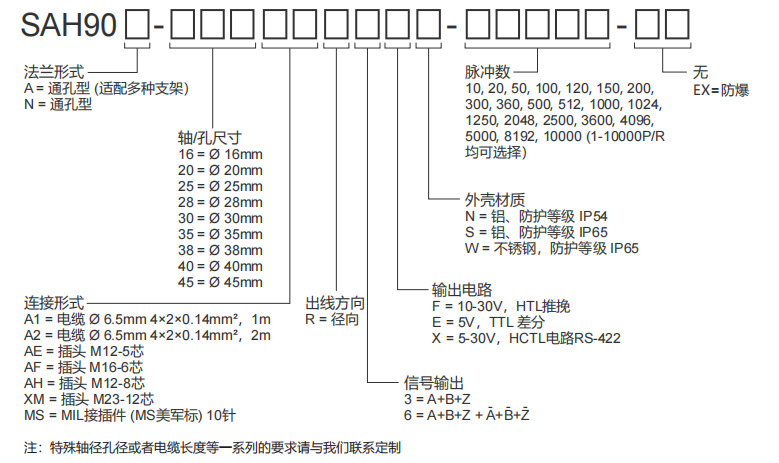

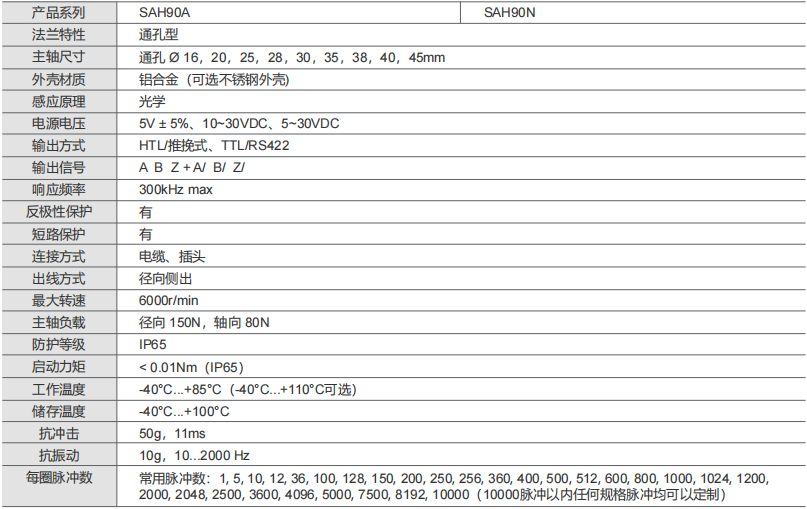

Selection Data Sheet
