SAC35, SAC48 servo motor encoder

Accurate photoelectric sensing of up to 8 signal levels
Number of pulses 2500P/R
Protection class up to IP42
Cable outlets with a length of only 0.25m
Plastic housing for greater lightness and cost savings
Through-hole shaft diameter Ø 9 copper taper shaft, sleeve type is more compact and space-saving.
Special tapered shaft design makes installation easier and operation more stable.
Reverse short-circuit and short-circuit protection to minimize the impact of installation errors on the encoder.

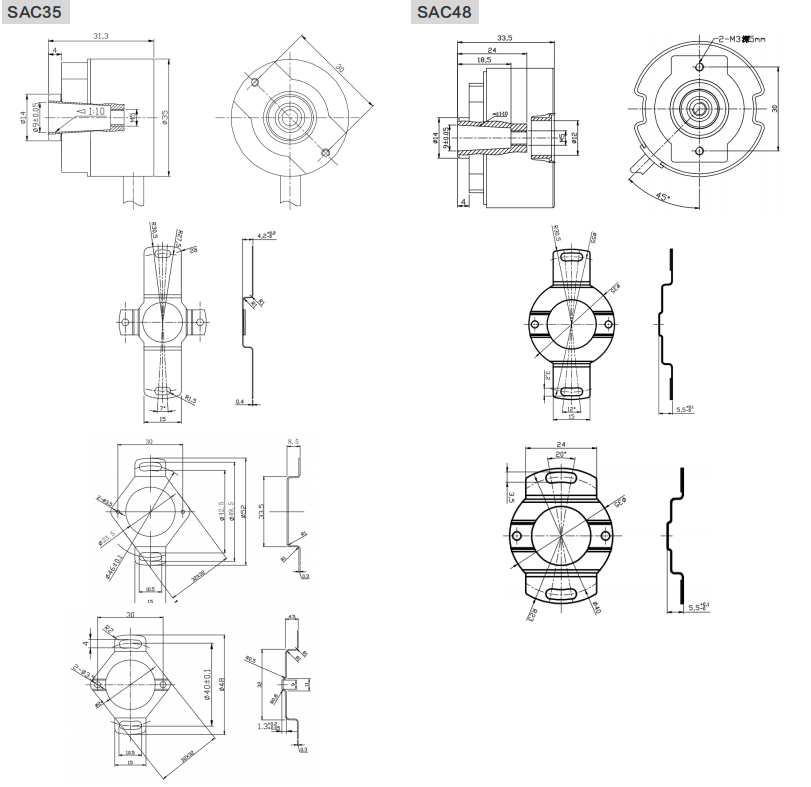

Installation Dimension Drawing
