4-20mA, 0-20mA Absolute Encoder SAS/M58

Home " Products " 58 Absolute Encoders " 4-20mA, 0-20mA Absolute Encoder SAS/M58

The core components of the product achieve 100% domestic production, ensuring supply chain stability and high-quality reliability.
Utilizing high-precision magnetic induction technology, we provide single-turn and multi-turn encoder solutions.
Supports analog output (current 4–20 mA, 0–20 mA), compatible with multiple control interfaces.
Single-turn resolution reaches up to 16 bits, while multi-turn resolution achieves 14 bits, meeting the demands of precision measurement.
Features exceptional impact and vibration resistance, making it suitable for harsh industrial environments.
Built-in reverse short-circuit and short-circuit protection effectively minimizes the impact of installation errors on the encoder.

4-20mA, 0-20mA Absolute Encoder SAS/M58 - Xiwedi

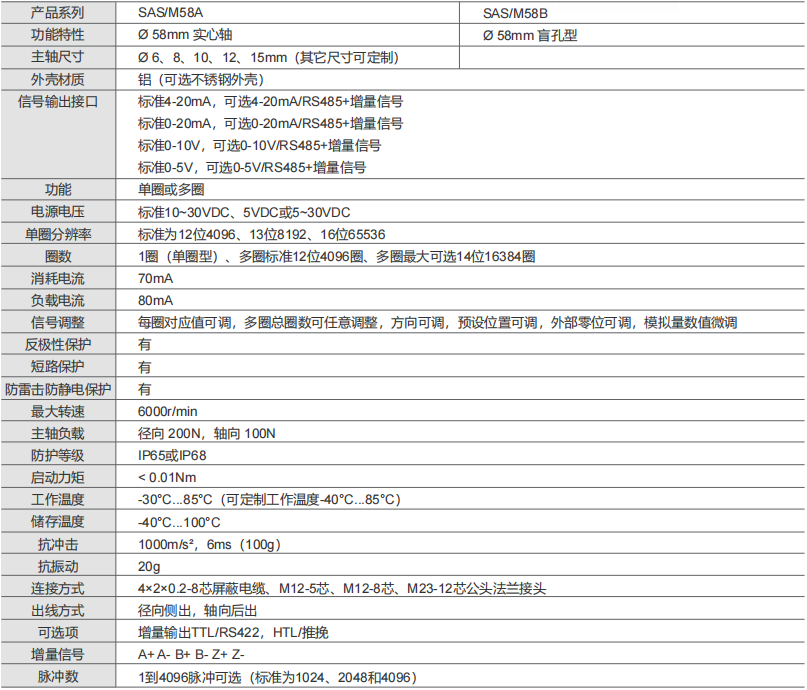

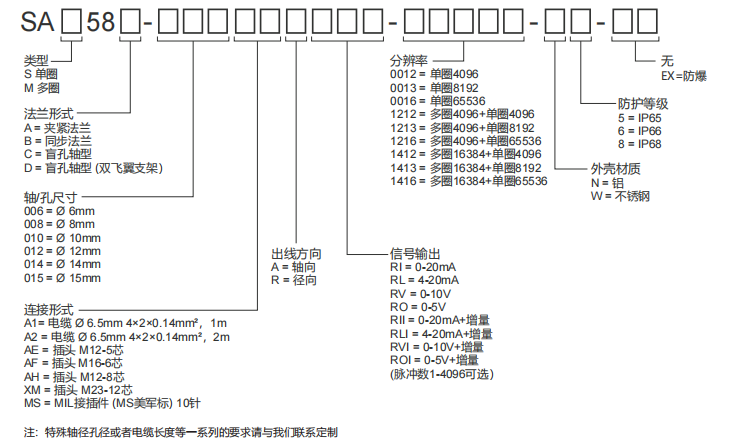

Product Specifications (Analog Signal Output Series)

Parameter Name	SAS/M58A (Solid Shaft)	SAS/M58C (Blind Hole Type)
Functional Features	Ø 58mm solid shaft	Ø 58mm blind hole type
Spindle Dimensions	Ø 6, 8, 10, 12, 15 mm (Other sizes available upon request)
Housing Material	Aluminum (optional stainless steel housing)
Signal Output Interface	Standard 4-20mA; Standard 0-20mA
Function	Single-turn or multi-turn
Power supply voltage	Standard 10 to 30 VDC
Single-turn resolution	Standard values are 12 bits (4096), 13 bits (8192), and 16 bits (65536).
Number of laps	1 revolution (single-revolution type), multi-revolution standard 12 digits 4096 revolutions, multi-revolution maximum selectable 14 digits 16384 revolutions
Current consumption	70mA
Load current	80mA
signal conditioning	Each revolution's corresponding value is adjustable; the total number of revolutions across multiple revolutions can be freely adjusted; direction is adjustable; preset positions are adjustable; external zero position is adjustable; analog values can be fine-tuned.
Safety Protection	Reverse polarity protection: Yes; Short-circuit protection: Yes; Lightning and static surge protection: Yes
Physical Properties	Maximum speed: 6000 rpm	Spindle load: Radial 200N, Axial 100N
Environmental Indicators	Protection rating: IP65 or IP68; Starting torque: < 0.01Nm
Temperature Range	Operating Temperature: -30°C to 85°C (customizable to -40°C); Storage Temperature: -40°C to 100°C
Mechanical strength	Impact resistance: 1000 m/s², 6 ms (100g); Vibration resistance: 20g

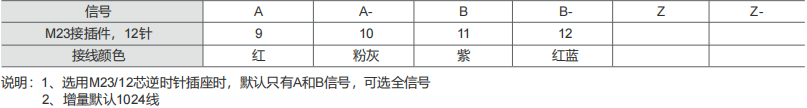

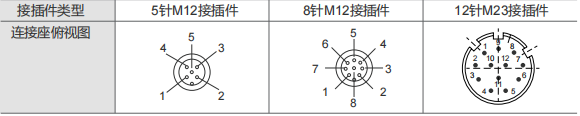

Connection Method	4×2×0.2-8-core shielded cable, M12-5-core, M12-8-core, M23-12-core male flange connectors
Qualification method	Radial side outlet, axial rear outlet
