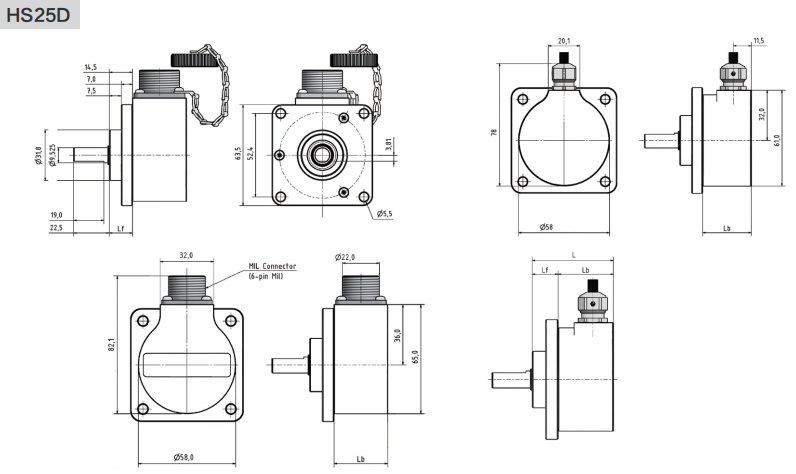

HD25, HS25D Encoders

Home " Products " Heavy Duty Encoders " HD25, HS25D Encoders

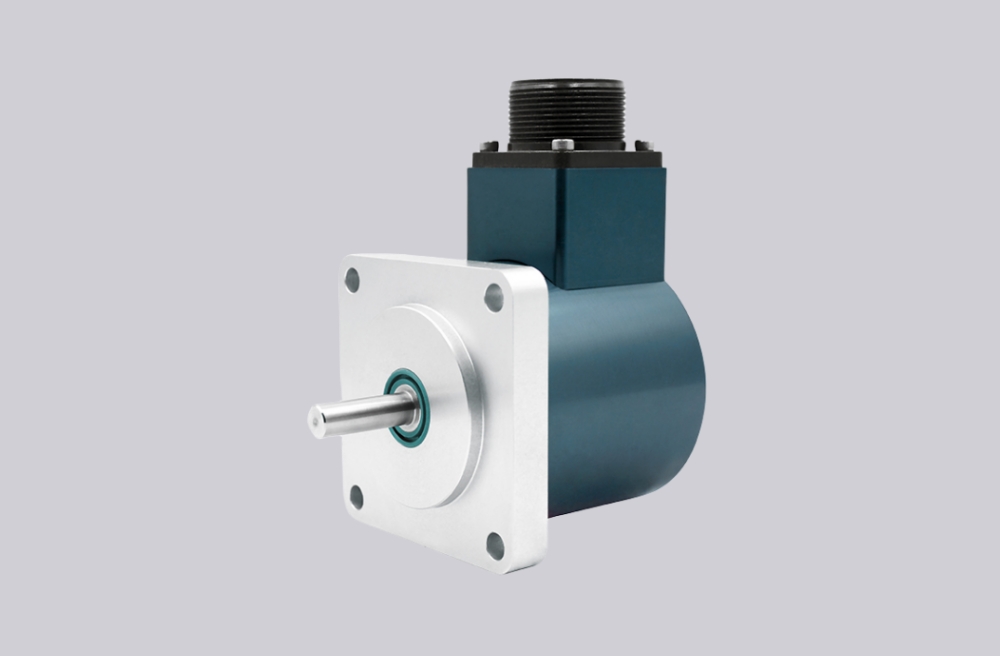

Series 25 Heavy Duty Rugged Housing Shaft Encoders Protected Against Seawater and Tropical Climates
Anodized aluminum or nickel-plated housing Rugged housing with protection class up to IP68
Protects against contamination by dust and liquids. Models for use in hazardous environments are ATEX certified.
Precise photoelectric or magnetic sensing technology, good electromagnetic compatibility
Up to 16384 P/R pulses per revolution
Over-voltage, over-current, surge protection
Rugged metal housing, double bearing design, protection class up to IP68
Reverse short-circuit and short-circuit protection to minimize the impact of installation errors on the encoder.

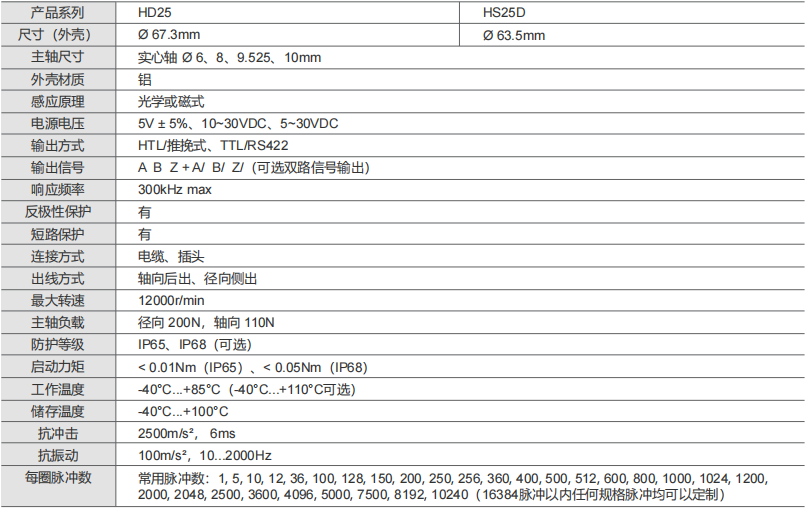

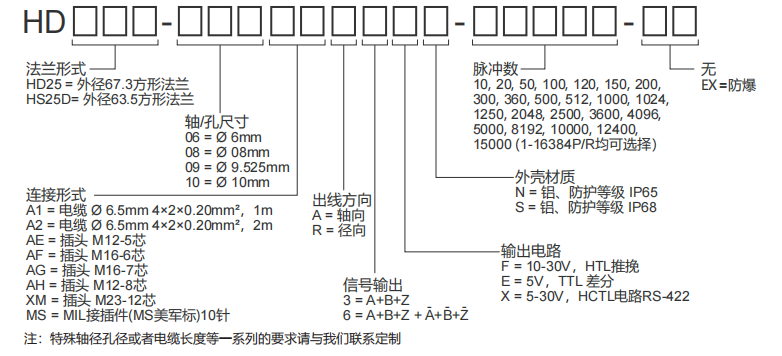

Product Specifications (HD25 / HS25D Series)

Product Line	HD25	HS25D

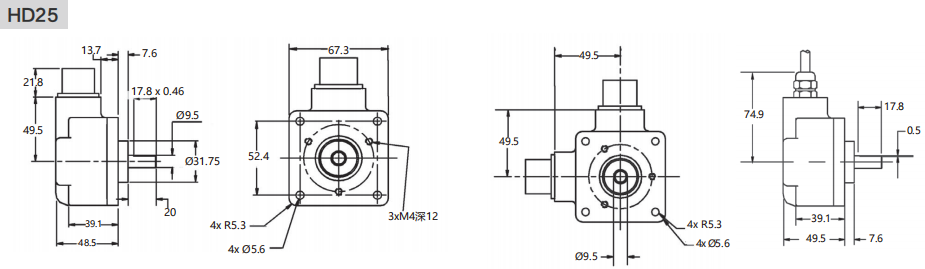

Dimensions (Housing)	Ø 67.3 mm	Ø 63.5 mm
Spindle Dimensions	Solid shaft Ø 6, 8, 9.525, 10 mm
Housing Material	铝
Principle of Induction	Optical or magnetic
Power supply voltage	5V ± 5% 10~30VDC 5~30VDC
Output Method	HTL/Push-Pull, TTL/RS422
Output signal	A B Z + A/B/Z/ (Optional dual-channel signal output)
Response frequency	300 kHz max
Reverse Polarity/Short-Circuit Protection	有
Connection and Wiring	Connection: Cable, plug; Output: Axial rear output, radial side output
Maximum rotational speed	12,000 rpm
Spindle load	Radial 200N, axial 110N
Protection Rating	IP65, IP68 (optional)
Starting Torque	< 0.01Nm (IP65), < 0.05Nm (IP68)
Operating/Storage Temperature	Operating: -40°C to +85°C (optional -40°C to +110°C); Storage: -40°C to +100°C
Impact/Vibration Resistance	Impact resistance: 2500 m/s², 6 ms; Vibration resistance: 100 m/s², 10..2000 Hz
Pulse count per revolution	Common pulse counts: 1...10240 (Custom specifications are available within the range of 16384 pulses)

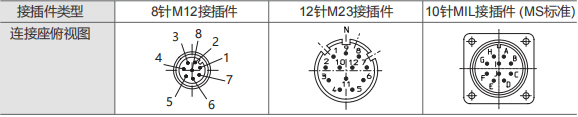

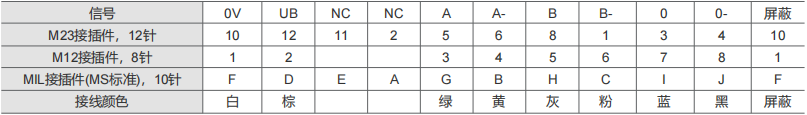

Electrical Connections (Wiring Definitions)

Signal	0V	UB	NC	NC	A	A-	B	B-	0	0-	Block
M23 connector, 12-pin	10	12	11	2	5	6	8	1	3	4	10
M12 connector, 8-pin	1	2	-	-	3	4	5	6	7	8	1
MIL Connector (MS Standard), 10-pin	F	D	E	A	G	B	H	C	I	J	F
Wire color	白	棕	-	-	绿	黄	灰	粉	蓝	黑	Block
