The core components of the product achieve 100% domestic production, ensuring a stable and reliable supply chain and exceptional quality.
Utilizing high-precision magnetic induction technology, we provide single-turn and multi-turn encoder solutions.
Supports Profibus-DP bus to enable high-speed, stable data communication in industrial field applications.
Single-turn resolution reaches up to 16 bits, while multi-turn resolution achieves 14 bits, meeting high-precision measurement requirements.
Featuring exceptional impact and vibration resistance, with a protection rating up to IP66, it is designed to withstand harsh environments.
Built-in reverse-shorting and short-circuit protection effectively minimizes the impact of installation errors on the encoder.
Product Specifications (Profibus-DP Bus Series)

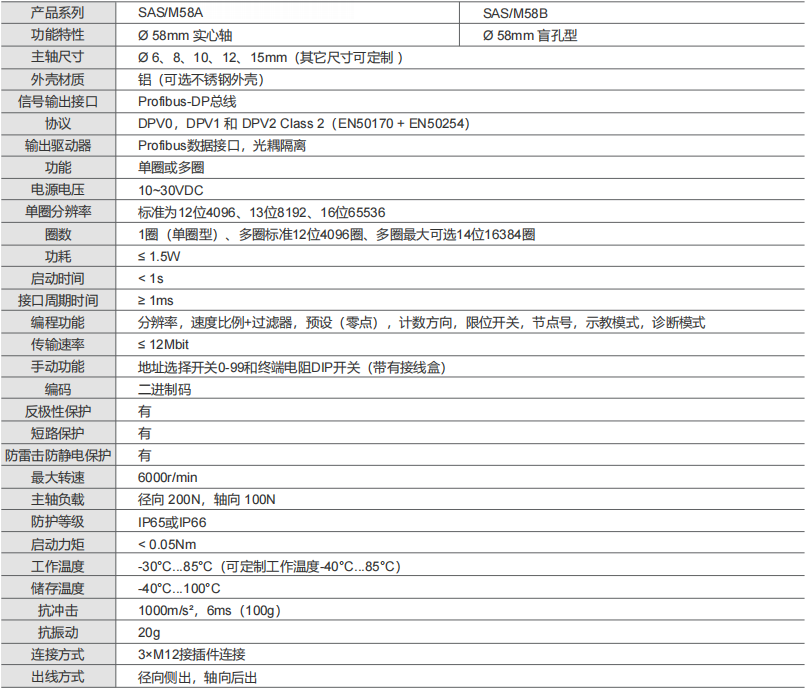

| Parameter Name | SAS/M58A (Solid Shaft) | SAS/M58C (Blind Hole Type) |
|---|---|---|
| Functional Features | Ø 58mm solid shaft | Ø 58mm blind hole type |
| Spindle Dimensions | Ø 6, 8, 10, 12, 15 mm (Other sizes available upon request) | |
| Housing Material | Aluminum (optional stainless steel housing) | |
| Signal Output Interface | Profibus-DP buses | |
| Agreement | DPV0, DPV1, and DPV2 Class 2 (EN 50170 + EN 50254) | |
| Output Driver | Profibus Data Interface, Optically Isolated | |
| Function | Single-turn or multi-turn | |
| Power supply voltage | 10 to 30 VDC | |
| Single-turn resolution | Standard values are 12 bits (4096), 13 bits (8192), and 16 bits (65536). | |
| Number of laps | 1 revolution (single-revolution type), multi-revolution standard 12 digits 4096 revolutions, multi-revolution maximum selectable 14 digits 16384 revolutions | |
| Power consumption | ≤ 1.5W | |
| Interface Cycle Time | ≥ 1 millisecond | |
| Programming Functions | Resolution, Speed Ratio + Filter, Preset (Zero Point), Counting Direction, Limit Switch, Node Number, Teach Mode, Diagnostic Mode | |
| Transmission rate | ≤ 12 Mbit | |
| Manual Function | Address Selection Switch 0-99 and Terminal Resistor DIP Switch (with Junction Box) | |
| Encoding | Binary code | |
| Physical Properties | Maximum speed: 6000 rpm | Spindle load: Radial 200N, Axial 100N |
| Protection Rating | IP65 or IP66 | |
| Starting Torque | < 0.05 N·m | |
| Connection Method | 3×M12 connector connection | |
| Qualification method | Radial side outlet, axial rear outlet | |
Wiring Definitions
| Signal | Definition |
|---|---|
| ⊥ | Power cord ground wire |
| B (left) | Data Cable B (Pair 1), Incoming Line |
| A (left) | Data Line A (Pair 1), Incoming Line |
| (-) | 0V |
| (+) | 10V…30V |
| B (right) | Data Cable B (Pair 2), Output Cable |
| A (right) | Data Line A (Pair 2), Outgoing Cable |
| (-) | 0V |
| (+) | 10V…30V |
| Notes | The power supply only needs to be connected once (regardless of which terminal group is used); when the terminal resistor is engaged, the BUS OUT is disconnected. |
Indicator Lights and How They Work
LED indicator

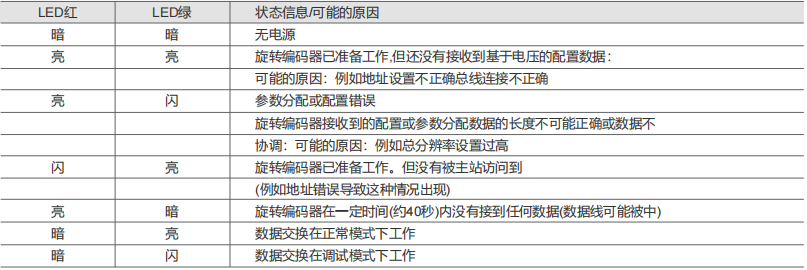

| LED red | LED green | Status Information/Possible Causes |
|---|---|---|
| 暗 | 暗 | No power supply |
| 亮 | 亮 | The rotary encoder is ready for operation but has not yet received voltage-based configuration data. Possible causes: incorrect address settings, incorrect bus connections, etc. |
| 亮 | 闪 | Parameter assignment or configuration error. The length of the configuration or parameter assignment data received by the rotary encoder is likely incorrect or the data is inconsistent. Possible cause: e.g., total resolution set too high. |
| 闪 | 亮 | The rotary encoder is ready for operation but has not been accessed by the master station (e.g., due to an incorrect address). |
| 亮 | 暗 | The rotary encoder has not received any data within a certain period of time (approximately 40 seconds) (the data line may be disconnected). |
| 暗 | 亮 | Data exchange operates in normal mode. |
| 暗 | 闪 | Data exchange operates in debug mode. |
Installation Dimension Drawing
SAS/M58A
SAS/M58B
SAS/M58C
SAS/M58D
Real-time Model Selection and Generation

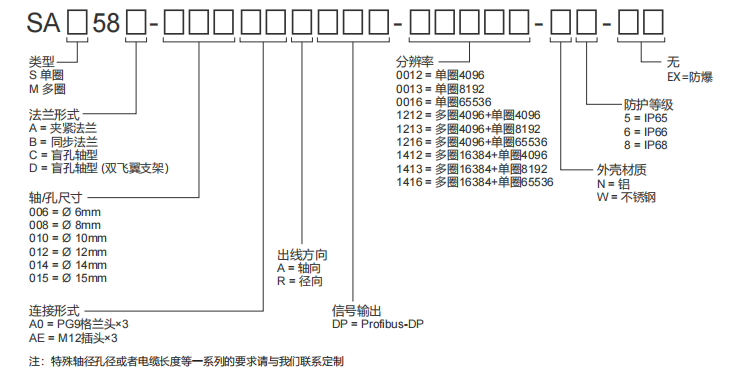

| SA | ① | 58 | ② | - | DP | ④ | ⑤ | - | ⑥ | - | ⑦ | ⑧ | ⑨ | - | ⑩ |
Note: For special shaft diameters, bore sizes, or cable lengths, please contact us for customization.
