RS485, MODBUS-RTU industrial absolute encoder SAS/M40

RS485, MODBUS-RTU absolute industrial encoder SAS/M40
Guarantee 100% localization of every component of the product.
Highly accurate magnetic sensing technology, singleturn or multiturn encoders
RS485 free communication interface or Modbus-RTU interface
Additional incremental signal TTL or HTL outputs available
Single-turn resolution up to 21 bits, multi-turn up to 14 bits
Superior shock and vibration resistance
Reverse short-circuit and short-circuit protection to minimize the impact of installation errors on the encoder.

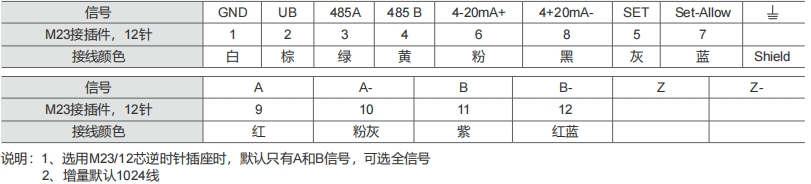

Absolute and incremental signal dual output wiring definition

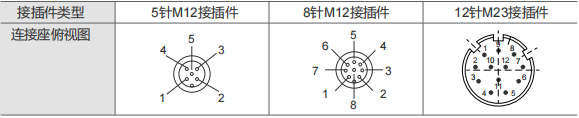

Top view of pin connector block

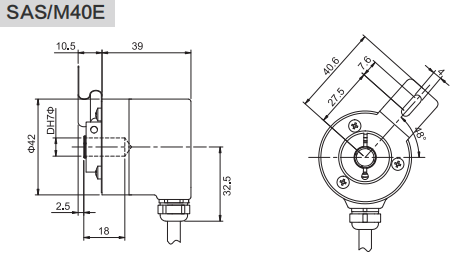

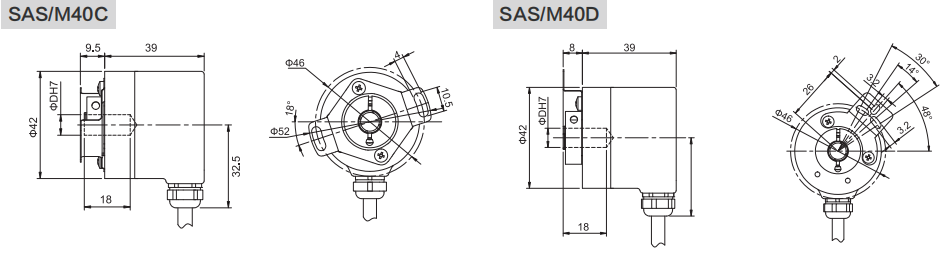

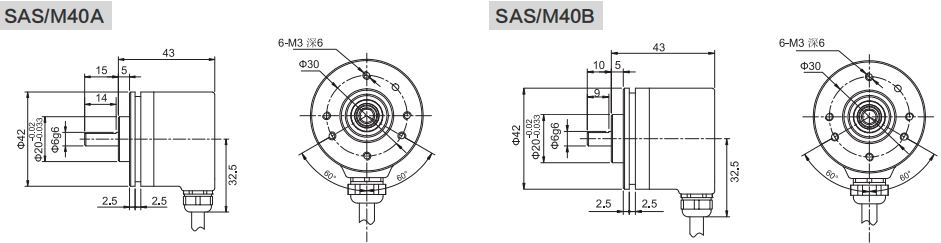

Installation Dimension Drawing

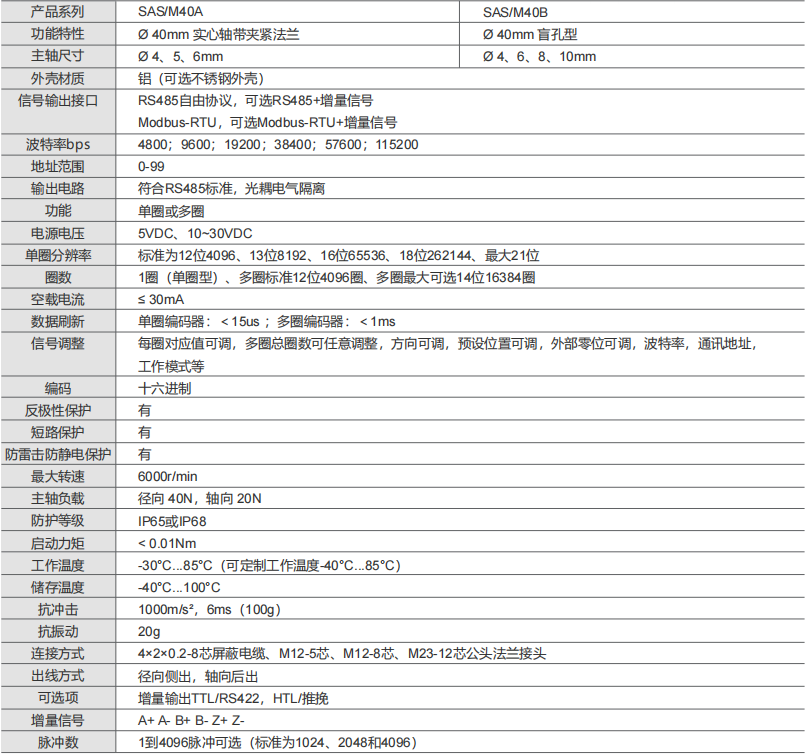

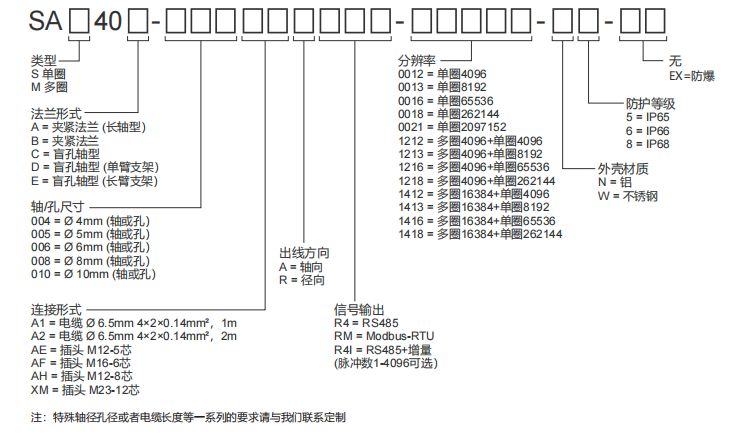

Selection Data Sheet
